How To Use Chainlift
CHAINLIFT is easy to use.
Watch these instructional videos to understand more.
INTRODUCTION

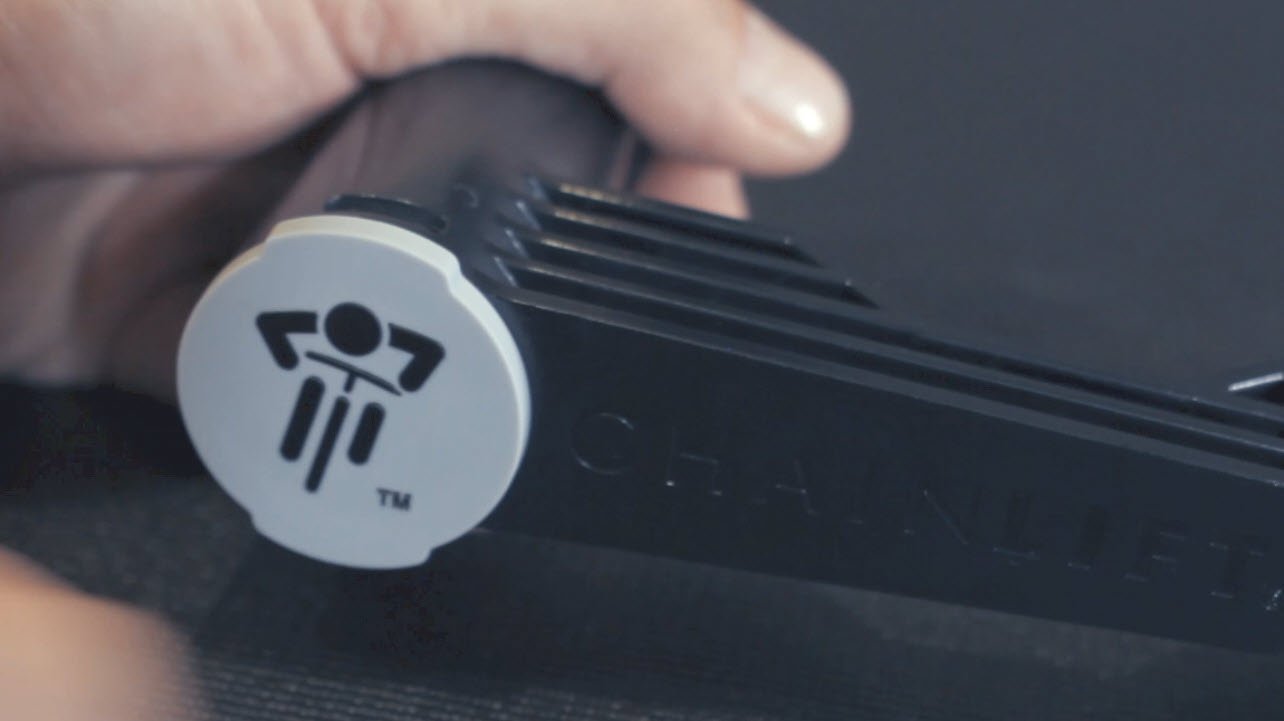

Getting Familiar with Chainlift
Watch Video

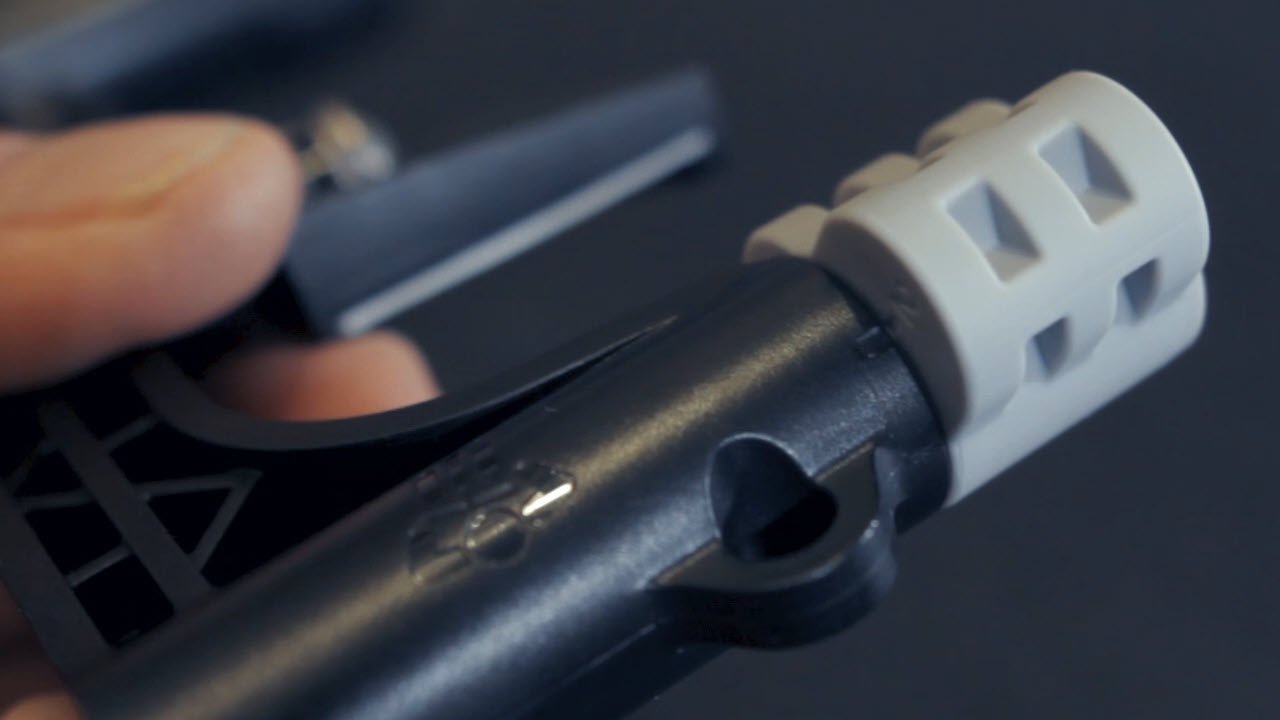

Choosing Support Tip Position
Watch Now

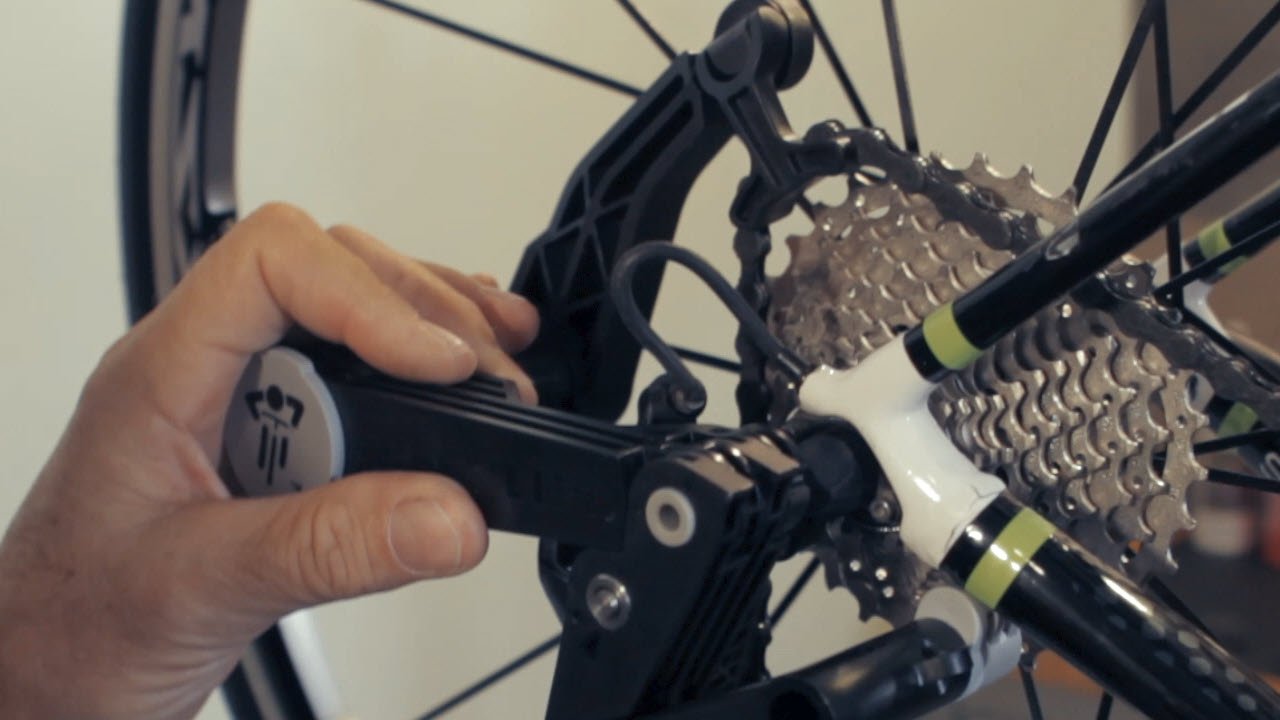

Disengage Your Chain
Watch VideoCommon Uses

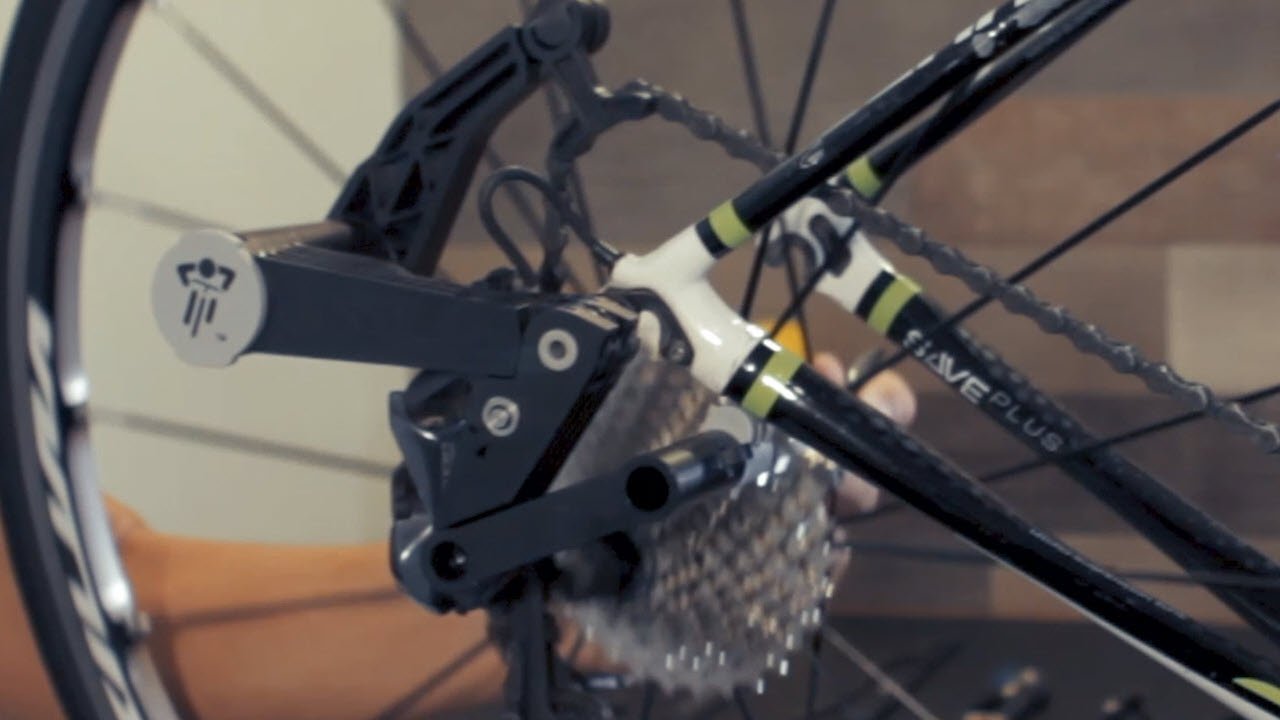

Wheel Removal
Watch video

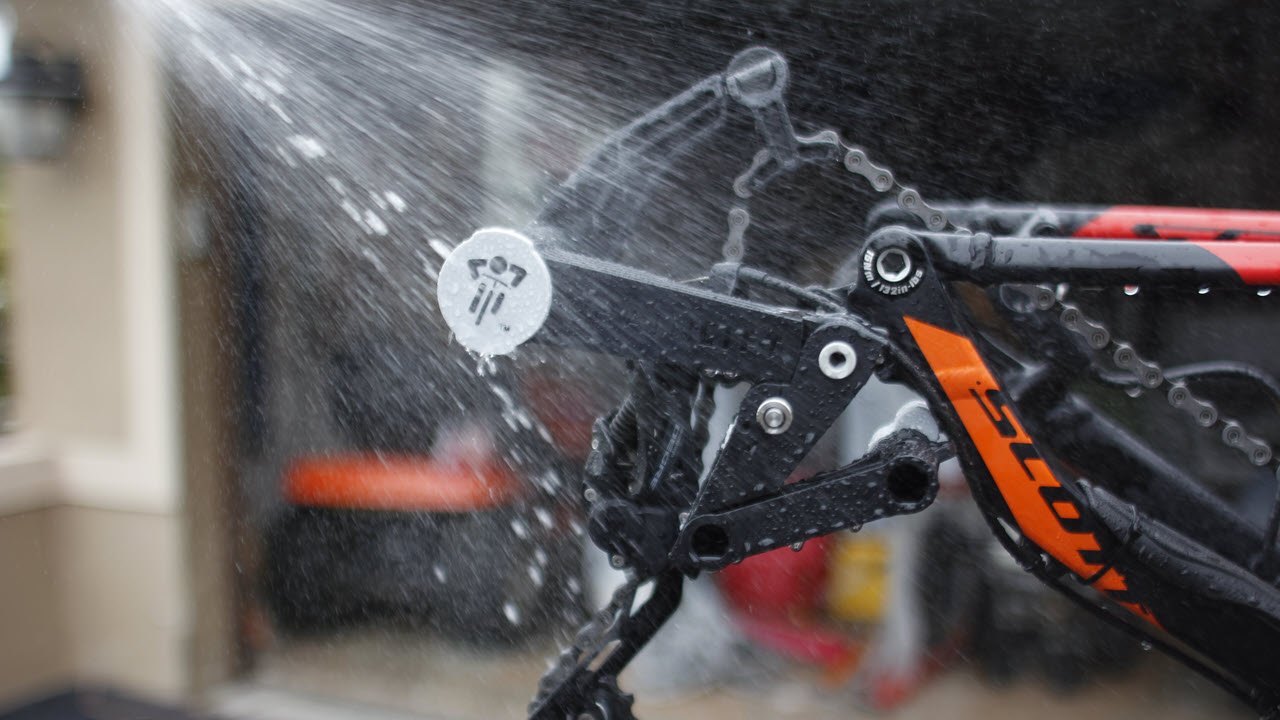

Cleaning
Watch video

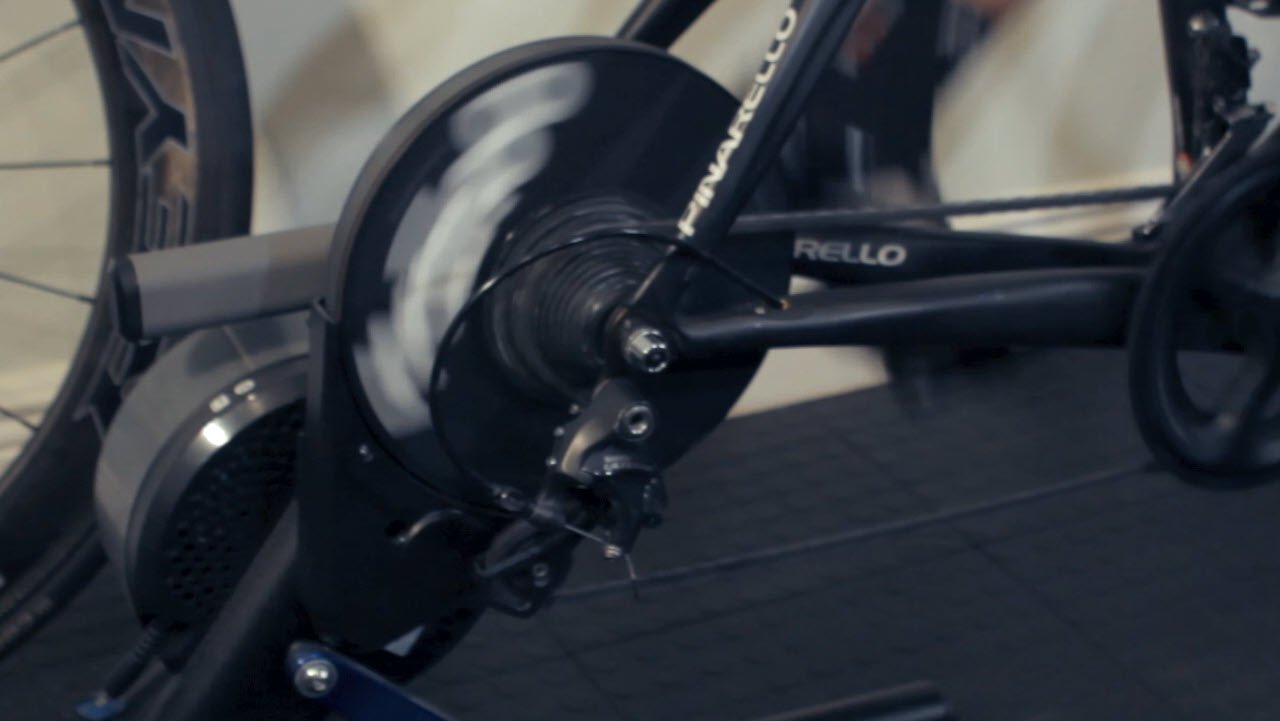

Indoor/ Smart
Trainer Set-up
Watch video
Car Transport
Watch video

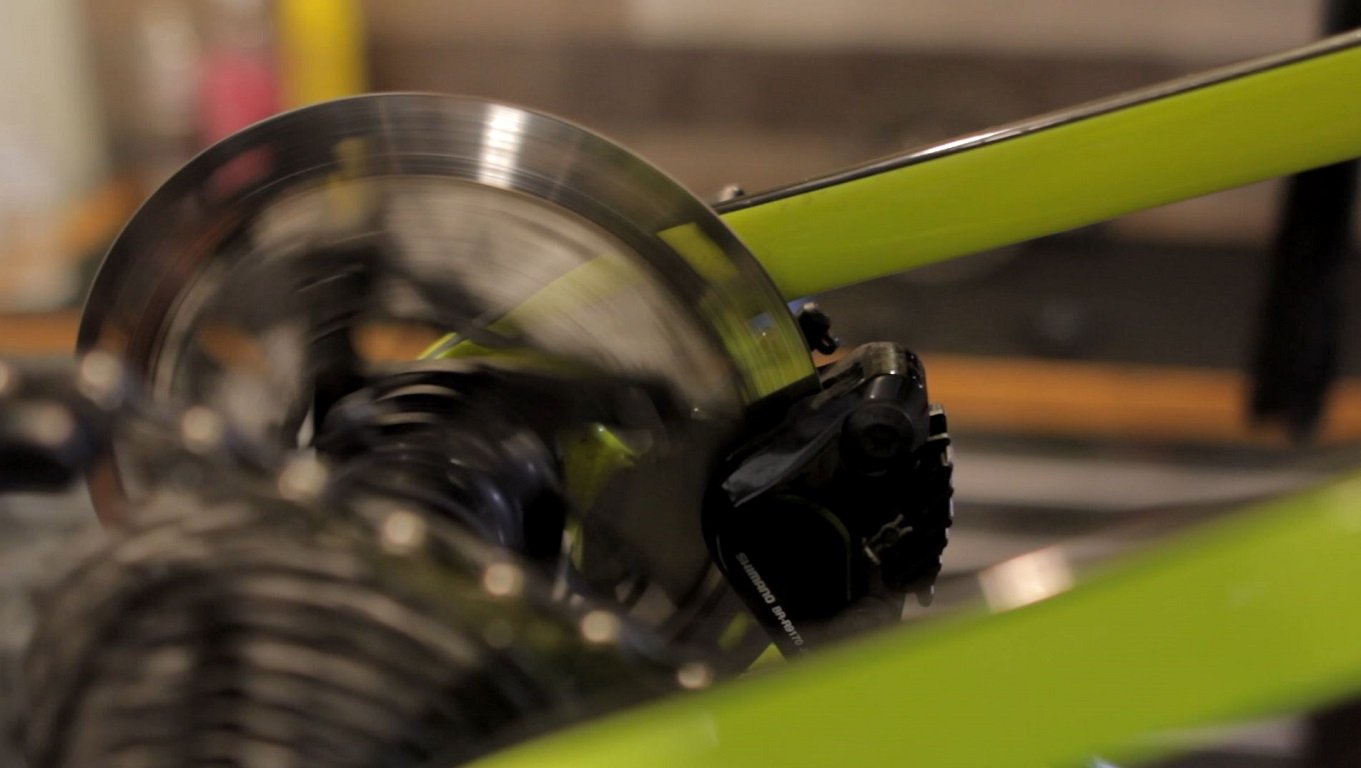

Disc Brake /
Caliper Alignment
WATCH VIDEO

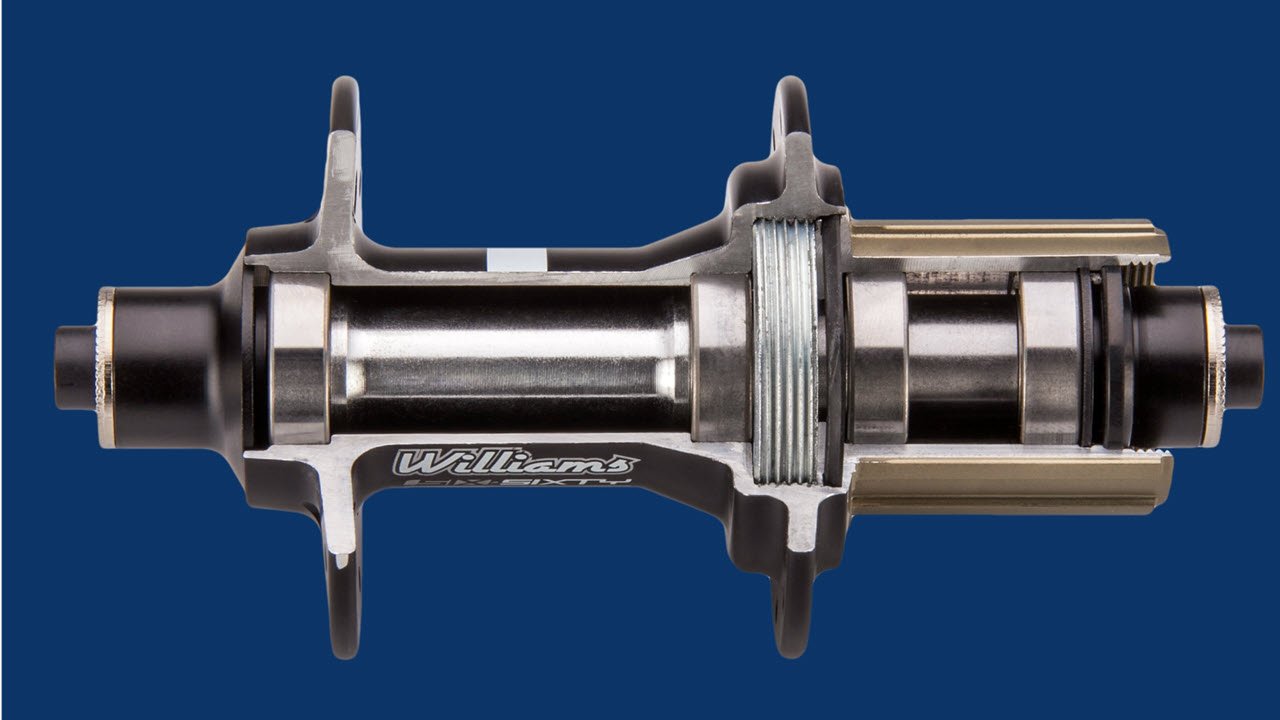

Wheel Bearing Check

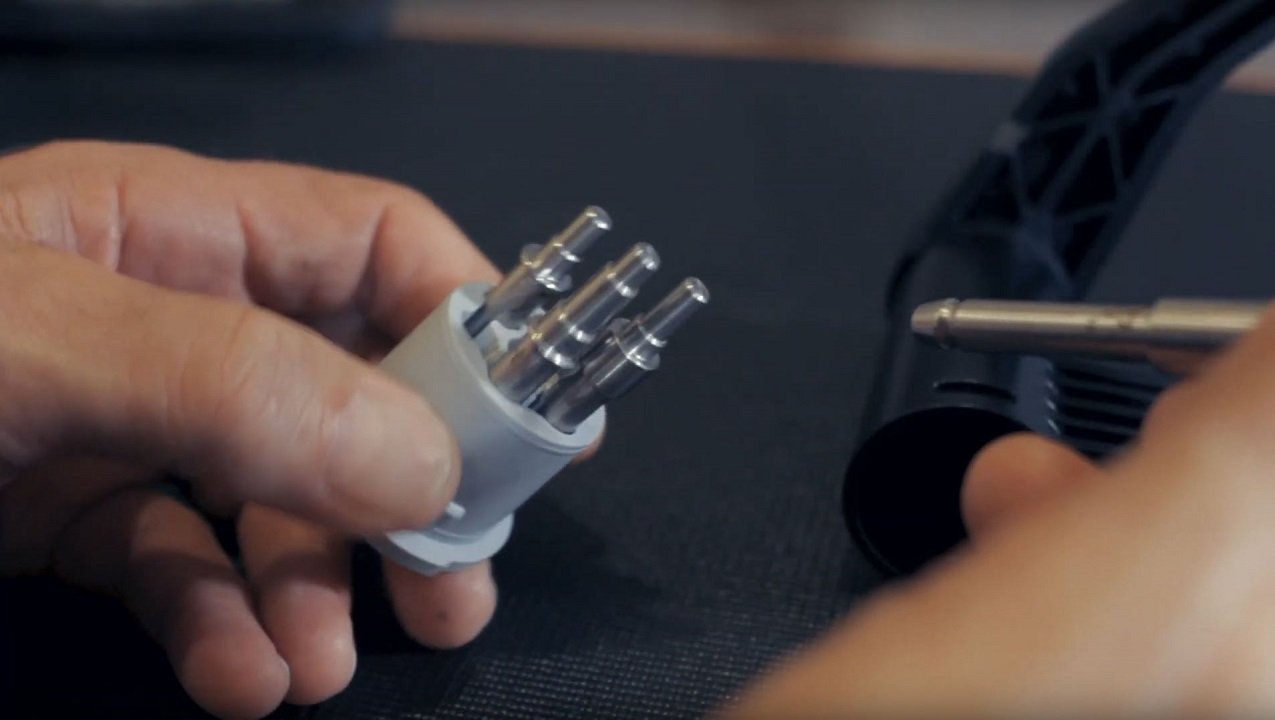

WATCH VIDEOChoosing the Right Insert Pin
Your CHAINLIFT comes with different interchangeable insert pins
stored in the rubber pin holder inside the handle.
Each insert pin is laser marked with a model number.
Find the right insert pin for your bike using the menu below (scroll down).
SELECT YOUR REAR DERAILLEUR BRAND
| MODEL | INSERT PIN |
|---|---|
| RED eTap AXS | |
| RD-RED-E-D1: | SRAM-3 |
| RED eTap | |
| RD-RED-E-A2, RD-RED-E-A1: | SRAM-1 or SRAM-3 |
| RED | |
| RD-RED-C2, RD-RED-B1: | SRAM-1 or SRAM-3 |
| Force eTap AXS | |
| RD-FRC-E-D1: | SRAM-3 |
| Force | |
| RD-FRC-B1, RD-FRC-A1: | SRAM-1 or SRAM-3 |
| Rival eTap AXS | |
| RD-RIV1-E-D1, RD-RIV-E-D1: | SRAM-4 |
| Rival | |
| RD-RIV-B1: | SRAM-1 or SRAM-3 |
| Apex | |
| RD-APX-A1: | SRAM-1 or SRAM-3 |
| MODEL | INSERT PIN |
|---|---|
| XX1 Eagle AXS | |
| RD-XX-1E-A1: | SRAM-2 |
| XX1 Eagle | |
| RD-XX-1-B2: | SRAM-2 |
| XX1 | |
| RD-XX-1-A2: | SRAM-1 or SRAM-3 |
| X01 Eagle AXS | |
| RD-X0-1E-A1: | SRAM-2 |
| X01 Eagle | |
| RD-X0-1-B2: | SRAM-2 |
| X01 | |
| RD-X0-1-A2: | SRAM-1 or SRAM-3 |
| X01 DH | |
| RD-X0-1DH-A3, RD-X0-1DH-A2: | SRAM-2 |
| EX1 E-MTB 8spd | |
| RD-EX1-A1: | SRAM-1 or SRAM-3 |
| GX Eagle | |
| RD-GX-1-B2: | SRAM-1 or SRAM-3 |
| GX | |
| RD-GX-1-A1 11 spd: | SRAM-1 or SRAM-3 |
| RD-GX-11-A1 11 spd: | SRAM-1 or SRAM-3 |
| RD-GX-A1 10 spd: | SRAM-3 |
| RD-GX-T21-A1 10 spd: | SRAM-3 |
| GX DH | |
| RD-GX-1DH-A3: | SRAM-2 |
| NX Eagle | |
| RD-NX-1-B1: | SRAM-1 or SRAM-3 |
| NX | |
| RD-NX-1-A1: | SRAM-1 or SRAM-3 |
| SX Eagle | |
| RD-SX-1-A1: | SRAM-1 or SRAM-3 |
| XX | |
| 10 spd: | SRAM-5 |
| XO | |
| 10 spd, 9 spd: | SRAM-3 |
| X9 | |
| RD-X9-A1 10 spd, 9 spd: | SRAM-3 |
| X7 | |
| RD-X7-A1 10 spd, 9 spd: | SRAM-3 |
| MODEL | INSERT PIN |
|---|---|
| RED eTap AXS | |
| RD-RED-E-D1: | SRAM-3 |
| Force 1 | |
| RD-FRC-1-A2: | SRAM-1 or SRAM-3 |
| Rival 1 | |
| RD-RIV-1-A2: | SRAM-1 or SRAM-3 |
| Apex 1 | |
| RD-APX-1-A1: | SRAM-1 or SRAM-3 |
| MODEL | INSERT PIN |
|---|---|
| Dura Ace | |
| RD-R9200 12spd, RD-R9250 DI2 12spd: | SHM-1 |
| RD-9100, RD-9150 DI2: | SHM-1 |
| RD-9000, RD-9070 DI2: | SHM-3 |
| RD-9000 v2, RD-9070 DI2 v2: | SHM-4 |
| RD-7900, RD-7970 DI2: | SHM-2 |
| Ultregra | |
| RD-R8100 12spd, RD-R8150 DI2 12spd: | SHM-1 |
| RD-8000, RD-8050 DI2: | SHM-1 |
| RD-6800, RD-6870 DI2, RD-6700, RD-6770 DI2, RD-6600: | SHM-2 |
| 105 | |
| RD-R7000: | SHM-1 |
| RD-5800, RD-5700: | SHM-3 |
| Tiagra | |
| All Models: | SHM-3 |
| Sora | |
| All Models: | SHM-3 |
| Claris | |
| All Models: | SHM-3 |
| Tourney A070 | |
| All Models: | SHM-7 |
| MODEL | INSERT PIN |
|---|---|
| XTR | |
| RD-M9100 12spd: | SHM-5 |
| RD-M9000, RD-M9050 DI2,: | SHM-1 |
| RD-M986: | SHM-1 |
| XT | |
| RD-M8120 12spd, RD-M8100 12spd: | SHM-5 |
| RD-M8000, RD-M8050 DI2: | SHM-1 |
| SLX | |
| RD-M7120 12spd, RD-M7100 12spd: | SHM-5 |
| RD-M7000-11, RD-M7000-10: | SHM-1 |
| RD-M670, RD-M675: | SHM-1 |
| Deore | |
| RD-M6100 12spd: | SHM-3 |
| RD-M6000: | SHM-1 |
| RD-M610, RD-M615: | SHM-1 |
| Alivio | |
| RD-M4000: | SHM-1 |
| Acera | |
| RD-M3000: | SHM-1 |
| RD-M390: | SHM-3 |
| Atlus | |
| RD-M2000: | SHM-7 |
| RD-M370: | SHM-3 |
| MODEL | INSERT PIN |
|---|---|
| RX/GRX | |
| RD-RX810, RD-RX812, RD-RX815 DI2, RD-RX817 DI2: | SHM-1 |
| RD-RX800-GS, RD-RX805-GS DI2, RD-RX400: | SHM-1 |
| MODEL | INSERT PIN |
|---|---|
| Super Record | |
| Super Record 12 EPS | CMPY-4 |
| Super Record 11 EPS | CMPY-4 |
| Super Record 11 | CMPY-3 |
| Super Record 12 spd (Mechanical) | Not Supported at this time |
| Record | |
| Record 11 EPS | CMPY-4 |
| Record 12 spd (Mechanical) | Not Supported at this time |
| Record 11 | CMPY-2 |
| Record 11 HO | CMPY-4 |
| Record 10 | CMPY-2 |
| Chorus | |
| Chorus 11 EPS | CMPY-4 |
| Chorus 12 spd (Mechanical) | Not Supported at this time |
| Chorus 11 | CMPY-1 |
| Chorus 10 | CMPY-2 |
| Potenza | |
| Potenza 11 | CMPY-1 |
| Centuar | |
| Centuar 11 | CMPY-2 |
| Centuar 10 spd | CMPY-2 |
| Centaur 9 spd | SHM-3 |
| Athena | |
| Athena 11 EPS | CMPY-4 |
| Athena 11 | CMPY-2 |
| Athena 7, 8 spd | SHM-3 |
| Veloce | |
| Veloce 10 spd | CMPY-2 |
| Veloce 9 spd | SHM-3 |
| MODEL | INSERT PIN |
|---|---|
| EKAR 13 Speed | SRAM-2 |
Please email us for pin confirmation at eu.customerservice@chainlift.com
Please email us for pin confirmation at eu.customerservice@chainlift.com
If you don’t find your model on the list or don’t know your model DO NOT WORRY. We will personally help you choose the right one. Just take a picture of your derailleur and email it to us at eu.customerservice@chainlift.com. We will reply quickly.
Or if you prefer live video help… just connect with us via Facetime, Facebook Messenger, Google Duo, Whatsapp or Skype.
Works in 3 quick steps
Mount with Pin
Push Derailleur Back
Lift Chain
